Support Vector Machine Fundamentals





Welcome to the 23rd part of our machine learning tutorial series and the next part in our Support Vector Machine section. In this tutorial, we're going to formalize the equation for the optimization of the Support Vector Machine.

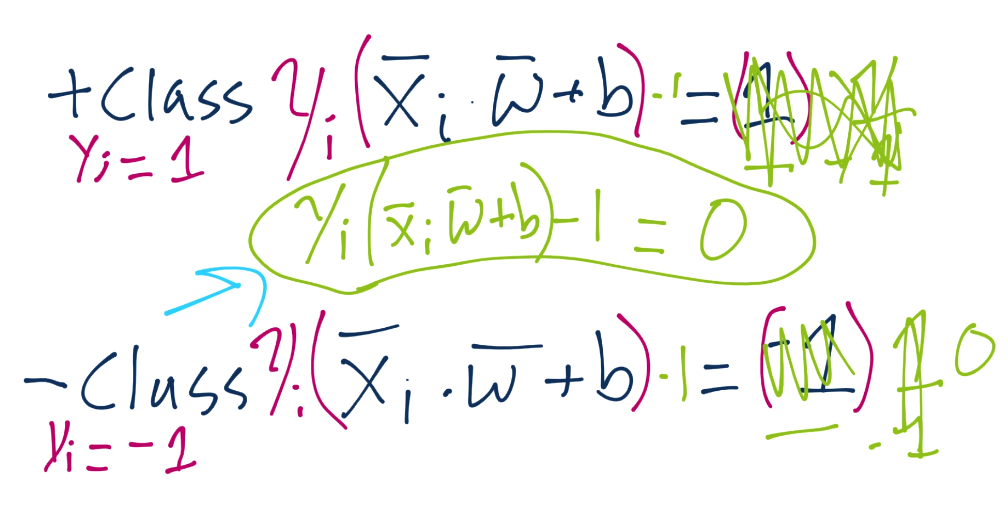

We left with the calculation of our support vectors as being: Yi(Xi.w+b)-1 = 0:

python tutorials

Now we're going to begin talking about how we go about the formal optimization problem of the Support Vector Machine. Specifically, how we acquire the best values for vector w and b. We'll also be covering some of the other fundamentals of the Support Vector Machine.

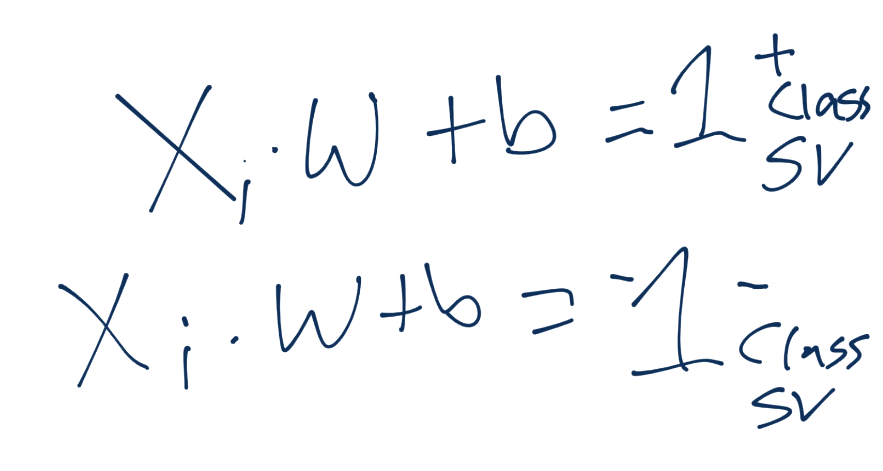

To start, recall the definition of a hyperplane is w.x+b. Thus, we have asserted that the definitions for the support vectors in that equation will be 1 for a positive class and -1 for a negative class:

python tutorials

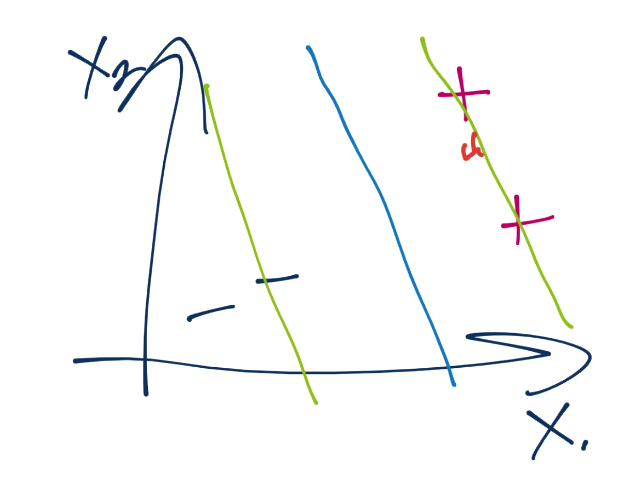

We can also surmise that, once we find a w and b to satisfy the constraint problem (the vector w with the smallest magnitude with the largest b), our decision function for classification of unknown points would just simply ask for the value of x.w+b. What if that value is 0.98? What might that look like on the graph?

python tutorials

So we're not quite to the positive support vector's hyperplane, but close. Are we beyond the decision boundary? Yes, of course, which is just where x.w+b=0. Thus, the actual decision function for an unknown featureset is simply sign(x.w+b). That's it! If it's a positive, then + class. Negative? - Class. Now in order to get that function, we need w and b as we've already figured out. We have the constraint function, which is Yi(Xi.W+b) >= 1, which requires us to satisfy per featureset. How come we're requiring known features to be greater than or equal to one? Without doing the multiplication by Yi, this is basically requiring all of our known featuresets to, if passed through x.w+b to be greater than 1 or less than -1, despite us having just shown that a value of, say, 0.98, would be a positive class. The reason is, new/unkown data to be classified can be between the support vector hyperplanes and the decision boundary, but the training/known data cannot.

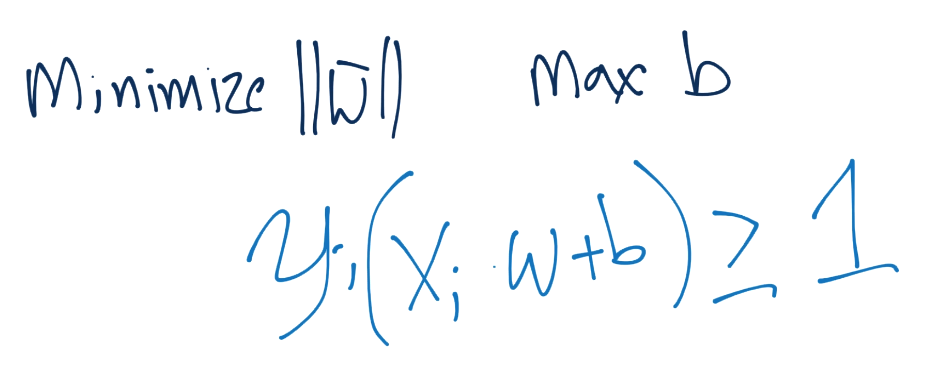

Thus, our goal is to minimize ||w||, maximize b, with the constraint such that Yi(Xi.W+b)>=1:

python tutorials

It's important to not be confused that we're trying to satisfy the constraint with the *vector* w, but minimize not the vector w, but the *magnitude* of vector w.

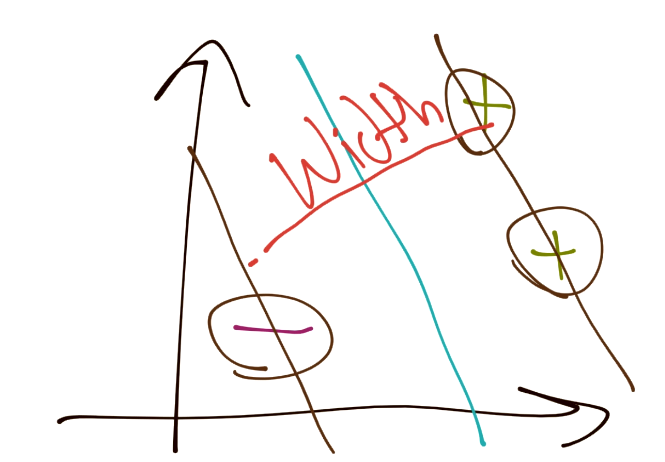

There are many ways to perform constraint optimization. The first method I am going to run through is the traditional depiction of the Support Vector Machine. To begin, consider we fundamentally are trying to maximize the width between separating hyperplanes:

python tutorials

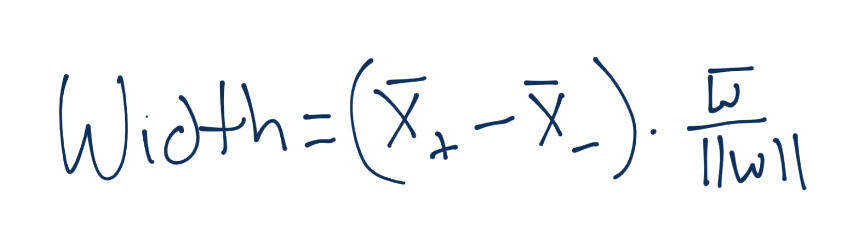

Next, the width between the vectors can be denoted as:

python tutorials

Notice we've got X+ and X- in there, those are the two hyperplanes we're referencing and trying to maximize the distance between. Luckily for us, there's no b here, that's nice. What about the X+ and X-, what are those? Do we know? Yeah we do! Recall:

python tutorials

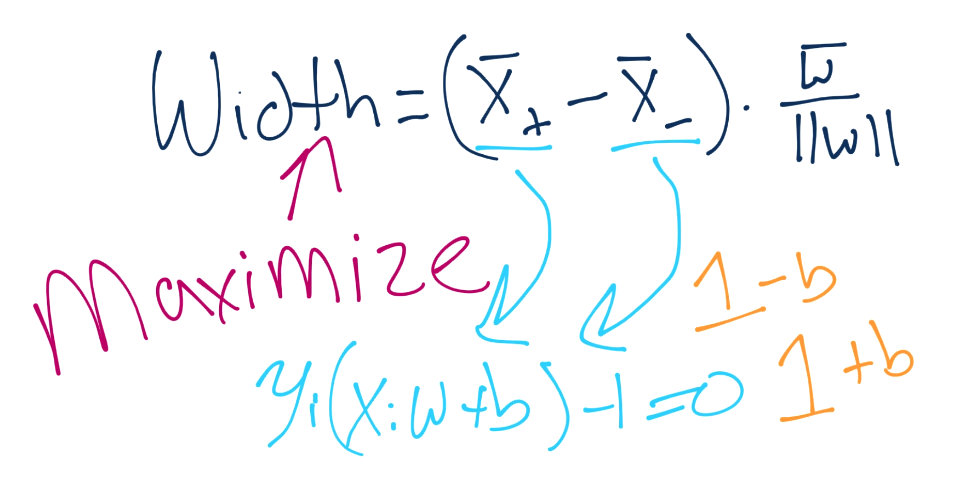

...and there's the b. One day, we're going to solve for that. Anyway, we'll plug in the equations, do the algebra, and we get that X+ and X- are essentially 1-b and 1+b.

python tutorials

Remember your order of operations? Isn't this convenient, we get to tell b to go away again, and now our equation for width gets simplified:

python tutorials

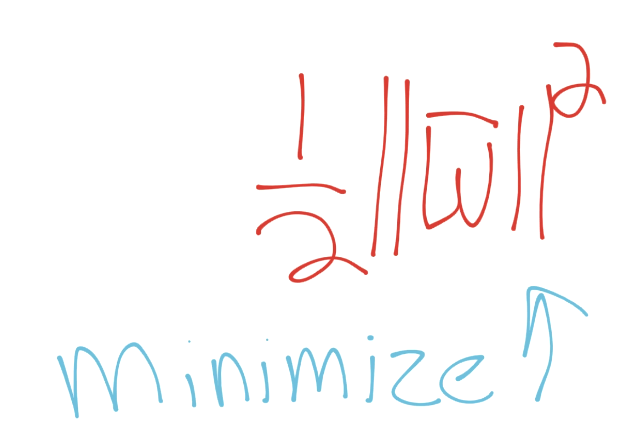

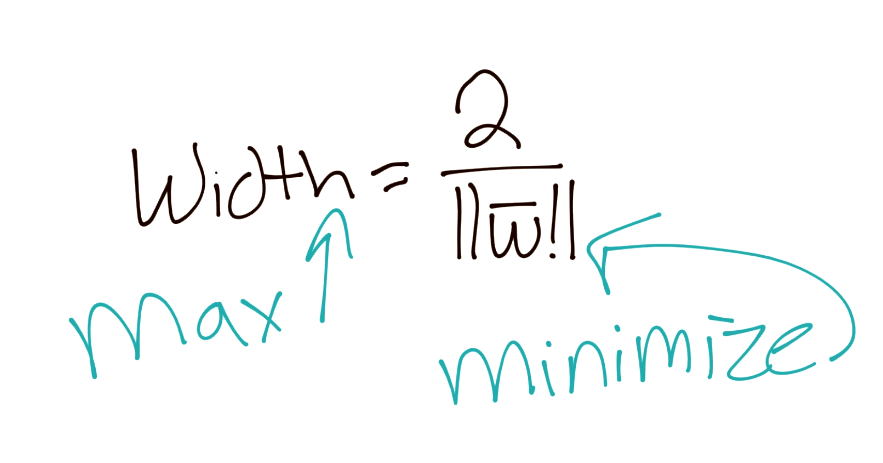

Then to better suit our needs in the future, we're going to assert that, if we want to maximize 2/||w||, then we also obviously want to minimize ||w||, which we've already stated. Since we want to minimize ||w||, we also would want to minimize, say, 1/2||w||^2:

python tutorials

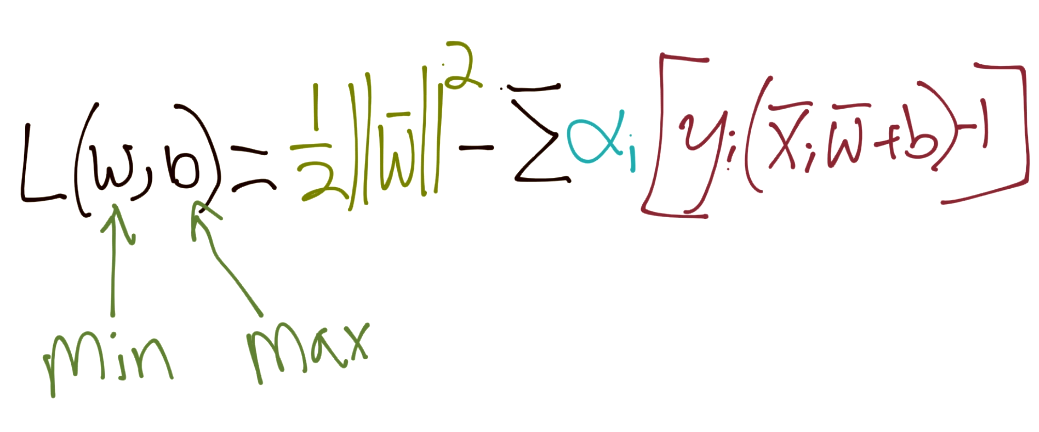

We're doing that, along with our constraint that: Yi(Xi.W+b)-1 = 0. Thus, the sum of ALL of the featuresets should meet that constraint of 0 still. So we introduce the lagrangian constraint optimization problem:

python tutorials

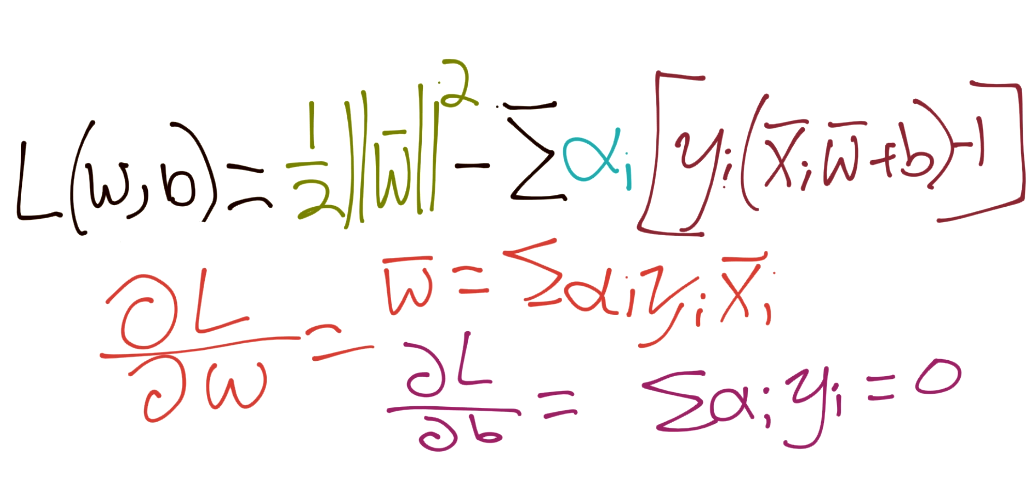

Doing the derivatives here

python tutorials

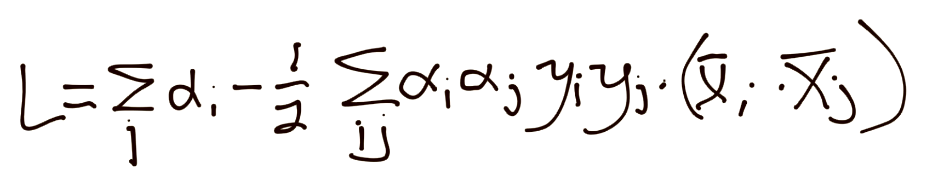

Putting back together:

python tutorials

Thus, if you're not already unhappy with the way things have turned, now you are. We've got alpha squared, which means we've got ourselves a quadratic programming problem to solve.

Well that escalated quickly.

In the next tutorial, given our interest in writing the SVM from scratch in code, we're going to see if we can simplify things a bit.
