Convolutional Neural Network (CNN) basics





Welcome to part twelve of the Deep Learning with Neural Networks and TensorFlow tutorials. In this tutorial, we're going to cover the basics of the Convolutional Neural Network (CNN), or "ConvNet" if you want to really sound like you are in the "in" crowd.

The Convolutional Neural Network gained popularity through its use with image data, and is currently the state of the art for detecting what an image is, or what is contained in the image. CNNs even play an integral role in tasks like automatically generating captions for images.

The basic CNN structure is as follows: Convolution -> Pooling -> Convolution -> Pooling -> Fully Connected Layer -> Output

Convolution is the act of taking the original data, and creating feature maps from it.Pooling is down-sampling, most often in the form of "max-pooling," where we select a region, and then take the maximum value in that region, and that becomes the new value for the entire region. Fully Connected Layers are typical neural networks, where all nodes are "fully connected." The convolutional layers are not fully connected like a traditional neural network.

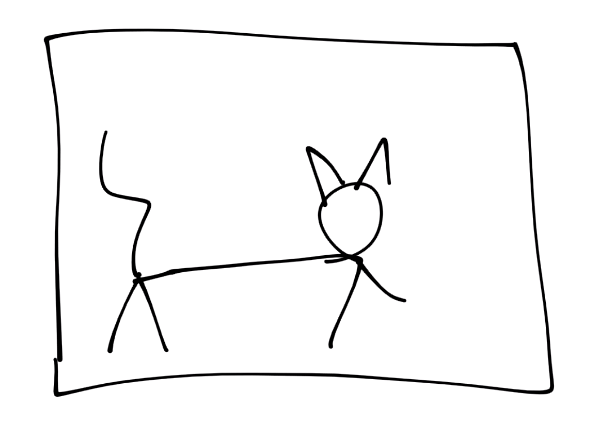

Okay, so now let's depict what's happening. We'll start with an image of a cat:

python machine learning tutorials

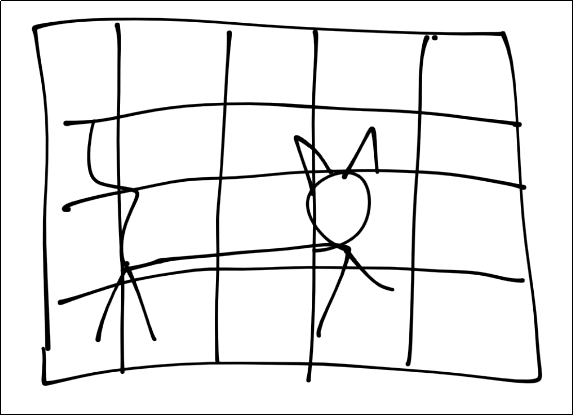

Then "convert to pixels:"

python machine learning tutorials

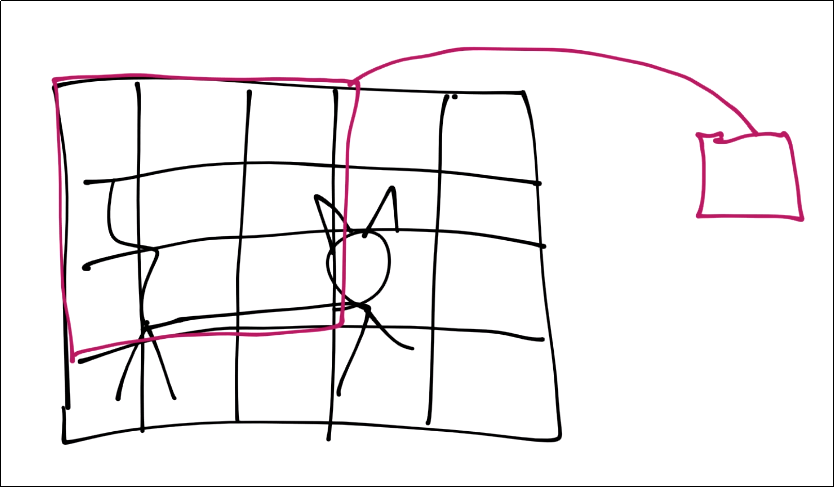

For the purposes of this tutorial, assume each square is a pixel. Next, for the convolution step, we're going to take a certain window, and find features within that window:

python machine learning tutorials

That window's features are now just a single pixel-sized feature in a new featuremap, but we will have multiple layers of featuremaps in reality.

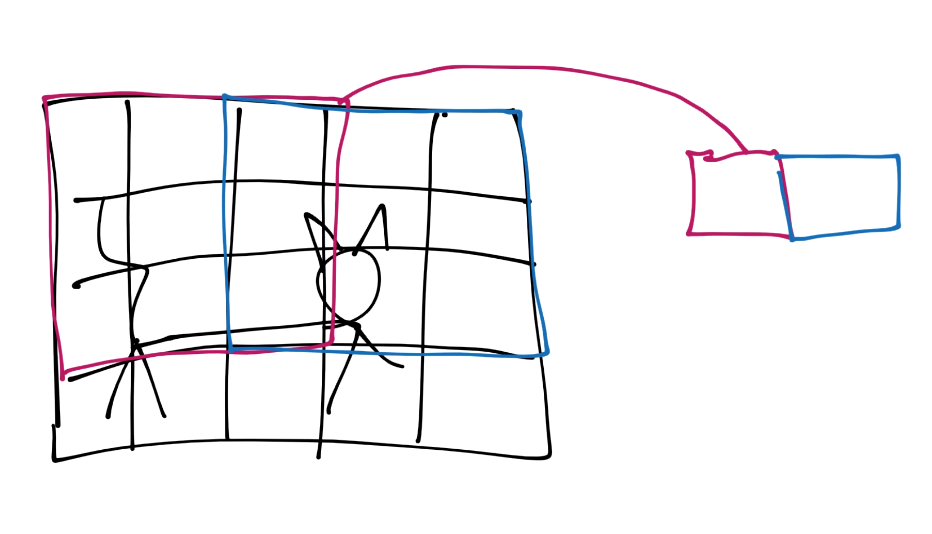

Next, we slide that window over and continue the process. There will be some overlap, you can determine how much you want, you just do not want to be skipping any pixels, of course.

python machine learning tutorials

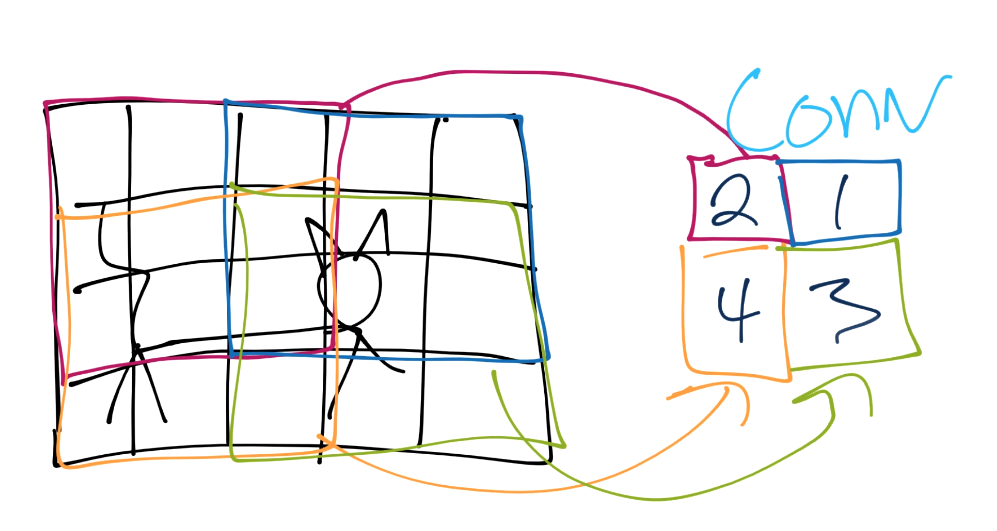

Now you continue this process until you've covered the entire image, and then you will have a featuremap. Typically the featuremap is just more pixel values, just a very simplified one:

python machine learning tutorials

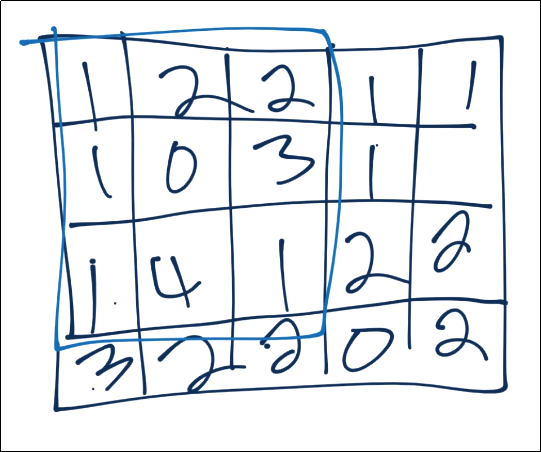

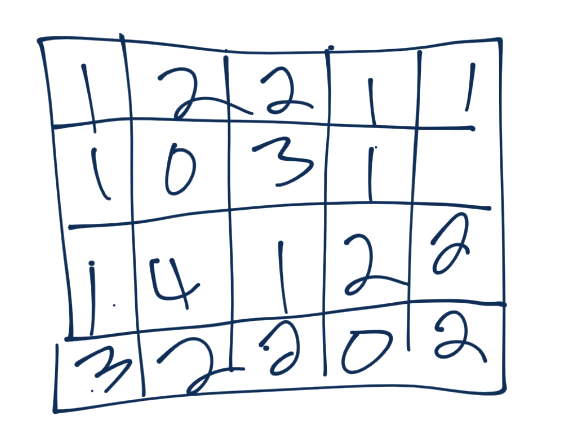

From here, we do pooling. Let's say our convolution gave us (I forgot to put a number in the 2nd row's most right square, assume it's a 3 or less):

python machine learning tutorials

Now we'll take a 3x3 pooling window:

python machine learning tutorials

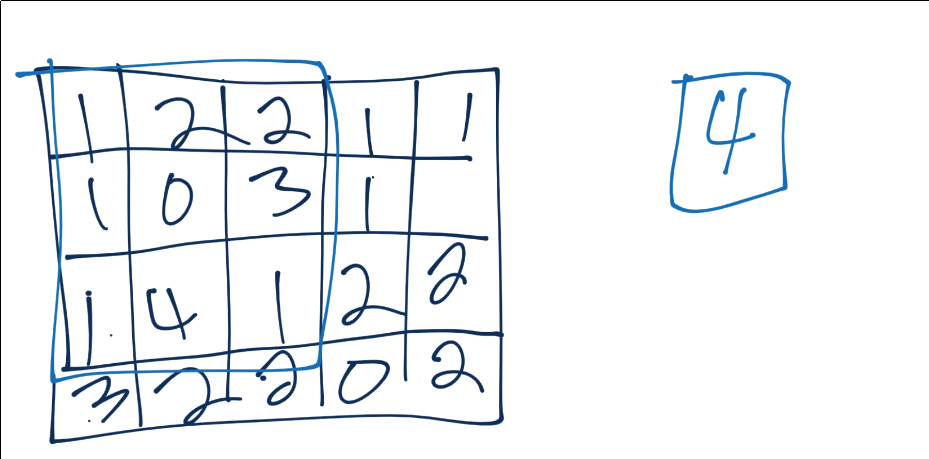

The most common form of pooling is "max pooling," where we simple take the maximum value in the window, and that becomes the new value for that region.

python machine learning tutorials

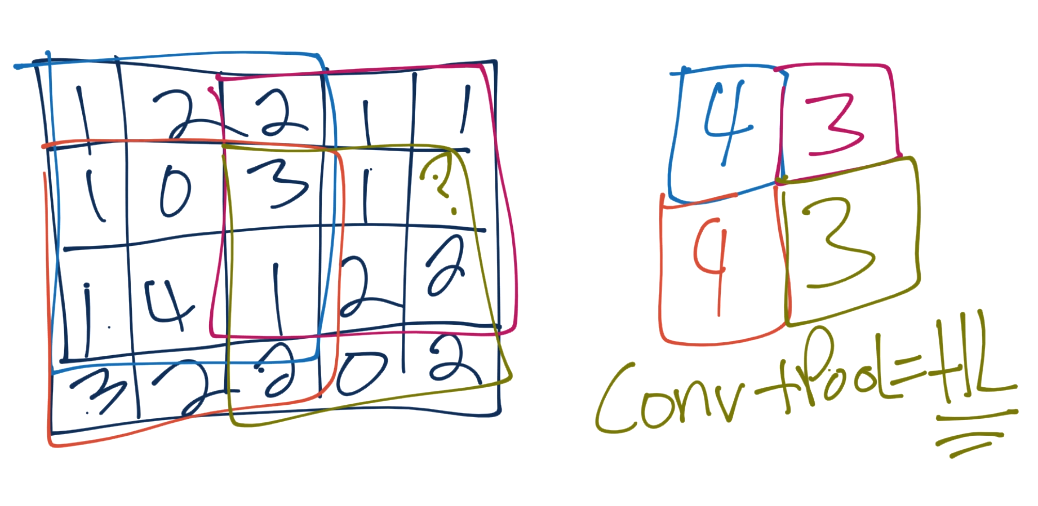

We continue this process, until we've pooled, and have something like:

python machine learning tutorials

Each convolution and pooling step is a hidden layer. After this, we have a fully connected layer, followed by the output layer. The fully connected layer is your typical neural network (multilayer perceptron) type of layer, and same with the output layer.

In the next tutorial, we're going to create a Convolutional Neural Network in TensorFlow and Python.
