K-Means from Scratch in Python





Welcome to the 37th part of our machine learning tutorial series, and another tutorial within the topic of Clustering..

In this tutorial, we're going to be building our own K Means algorithm from scratch. Recall the methodology for the K Means algorithm:

  1. Choose value for K
  2. Randomly select K featuresets to start as your centroids
  3. Calculate distance of all other featuresets to centroids
  4. Classify other featuresets as same as closest centroid
  5. Take mean of each class (mean of all featuresets by class), making that mean the new centroid
  6. Repeat steps 3-5 until optimized (centroids no longer moving)

To begin, we will start with:

import matplotlib.pyplot as plt
from matplotlib import style
style.use('ggplot')
import numpy as np

X = np.array([[1, 2],
              [1.5, 1.8],
              [5, 8 ],
              [8, 8],
              [1, 0.6],
              [9,11]])

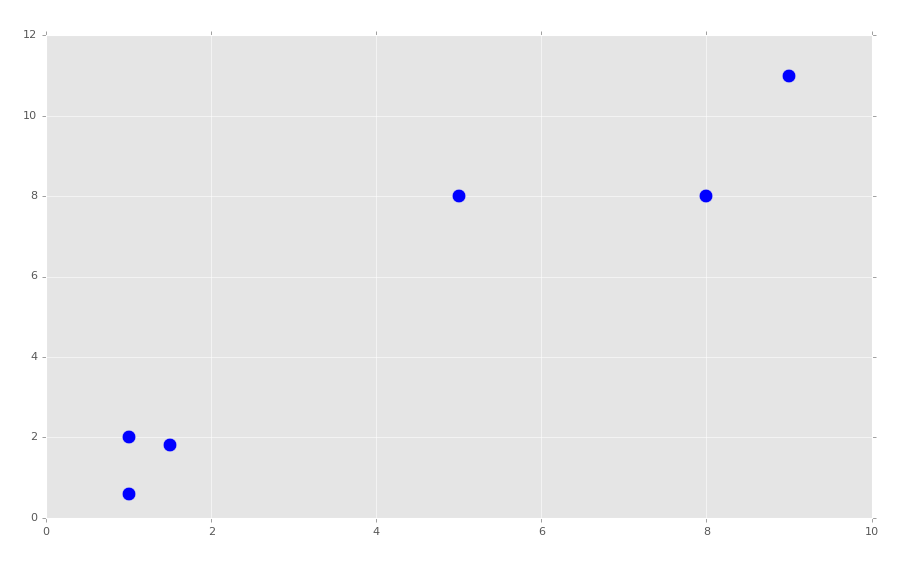

plt.scatter(X[:,0], X[:,1], s=150)
plt.show()
python machine learning tutorials

It should be obvious where our clusters are. We're going to be choosing K=2. We will begin building our K Means class:

class K_Means:
    def __init__(self, k=2, tol=0.001, max_iter=300):
        self.k = k
        self.tol = tol
        self.max_iter = max_iter

We just set up some starting values here, k is ...well... k. The tol value is our tolerance, which will allow us to say we're optimized if the centroid is not moving more than the tolerance value. The max_iter value is to limit the number of cycles we're willing to run.

Now we'll begin working on the fit method:

    def fit(self,data):

        self.centroids = {}

        for i in range(self.k):
            self.centroids[i] = data[i]

To begin, we know we just need to pass whatever data we're fitting to. We then begin an empty dictionary, which will soon house our centroids. Next, we begin a for loop which simply assigns our starting centroids as the first two data samples in our data. If you wanted to truly select randomly the starting centroids, you could first shuffle the data, but this should be fine.

Continuing to build the class:

class K_Means:
    def __init__(self, k=2, tol=0.001, max_iter=300):
        self.k = k
        self.tol = tol
        self.max_iter = max_iter

    def fit(self,data):

        self.centroids = {}

        for i in range(self.k):
            self.centroids[i] = data[i]

        for i in range(self.max_iter):
            self.classifications = {}

            for i in range(self.k):
                self.classifications[i] = []

Now we begin iterating through our max_iter value. While here, we start with empty classifications, and then create two dict keys (by iterating through range of self.k).

Next, we need to iterate through our features, calculate distances of the features to the current centroids, and classify them as such:

class K_Means:
    def __init__(self, k=2, tol=0.001, max_iter=300):
        self.k = k
        self.tol = tol
        self.max_iter = max_iter

    def fit(self,data):

        self.centroids = {}

        for i in range(self.k):
            self.centroids[i] = data[i]

        for i in range(self.max_iter):
            self.classifications = {}

            for i in range(self.k):
                self.classifications[i] = []

            for featureset in data:
                distances = [np.linalg.norm(featureset-self.centroids[centroid]) for centroid in self.centroids]
                classification = distances.index(min(distances))
                self.classifications[classification].append(featureset)

Next, we're going to need to create the new centroids, as well as measuring the movement of the centroids. If that movement is less than our tolerance (self.tol), then we're all set. Including that addition, full code up to this point:

import matplotlib.pyplot as plt
from matplotlib import style
style.use('ggplot')
import numpy as np

X = np.array([[1, 2],
              [1.5, 1.8],
              [5, 8 ],
              [8, 8],
              [1, 0.6],
              [9,11]])

plt.scatter(X[:,0], X[:,1], s=150)
plt.show()

colors = 10*["g","r","c","b","k"]


class K_Means:
    def __init__(self, k=2, tol=0.001, max_iter=300):
        self.k = k
        self.tol = tol
        self.max_iter = max_iter

    def fit(self,data):

        self.centroids = {}

        for i in range(self.k):
            self.centroids[i] = data[i]

        for i in range(self.max_iter):
            self.classifications = {}

            for i in range(self.k):
                self.classifications[i] = []

            for featureset in data:
                distances = [np.linalg.norm(featureset-self.centroids[centroid]) for centroid in self.centroids]
                classification = distances.index(min(distances))
                self.classifications[classification].append(featureset)

            prev_centroids = dict(self.centroids)

            for classification in self.classifications:
                self.centroids[classification] = np.average(self.classifications[classification],axis=0)


In the next tutorial, we'll finish our class and see how it performs!
