In this Matplotlib tutorial, we cover the 3D bar chart. The 3D bar chart is quite unique, as it allows us to plot more than 3 dimensions. No, you cannot plot past the 3rd dimension, but you can plot more than 3 dimensions.
With bars, you have the starting point of the bar, the height of the bar, and the width of the bar. With a 3D bar, you also get another choice, which is depth of the bar. Most of the time, a bar chart starts with the bar flat on an axis, but you can add another dimension by releasing this constraint as well. We'll keep it rather simple, however:
from mpl_toolkits.mplot3d import axes3d import matplotlib.pyplot as plt import numpy as np from matplotlib import style style.use('ggplot') fig = plt.figure() ax1 = fig.add_subplot(111, projection='3d') x3 = [1,2,3,4,5,6,7,8,9,10] y3 = [5,6,7,8,2,5,6,3,7,2] z3 = np.zeros(10) dx = np.ones(10) dy = np.ones(10) dz = [1,2,3,4,5,6,7,8,9,10] ax1.bar3d(x3, y3, z3, dx, dy, dz) ax1.set_xlabel('x axis') ax1.set_ylabel('y axis') ax1.set_zlabel('z axis') plt.show()

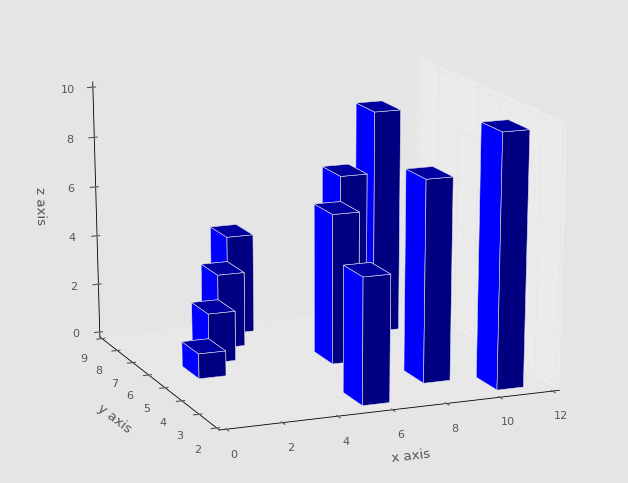

Note here that we have to define x,y,z... and then 3 more dimensions for depth. This gives us:
