Tkinter GUI tutorial in Python

Building a pop-up message window





Many times, it is generally useful to have a quick and easy way to communicate with your user. There are many ways this can be done, with some text at the top of the window, or with something like a pop up message. Text at the top of the window is very easy to miss, so most people choose to do a pop-up message. This is used for things like informational messages, warnings, disclaimers, new product versions, and a whole lot more.

The goal is to create something that we can use in a variety of circumstances, so we want a popup window function, along with a text parameter where we can specify the text we want to show.

To start, we're going to need a couple new fonts, since "large_font" is a bit big.

LARGE_FONT= ("Verdana", 12)
NORM_FONT = ("Helvetica", 10)
SMALL_FONT = ("Helvetica", 8)

Now that we have that, we're going to create our popup function:

def popupmsg(msg):
    popup = tk.Tk()
    popup.wm_title("!")
    label = ttk.Label(popup, text=msg, font=NORM_FONT)
    label.pack(side="top", fill="x", pady=10)
    B1 = ttk.Button(popup, text="Okay", command = popup.destroy)
    B1.pack()
    popup.mainloop()

Here, we're defining a new tk.Tk instance, giving it a new title ("!"), and then preparing our text label with the msg parameter from the function. From there, we create a simple "okay" button, which will destroy the window. We pack that, and we're all set!

That's it, now when we want to have a popup message, say with a button, we would just have something like: command = lambda: popupmsg("popup message here!"))

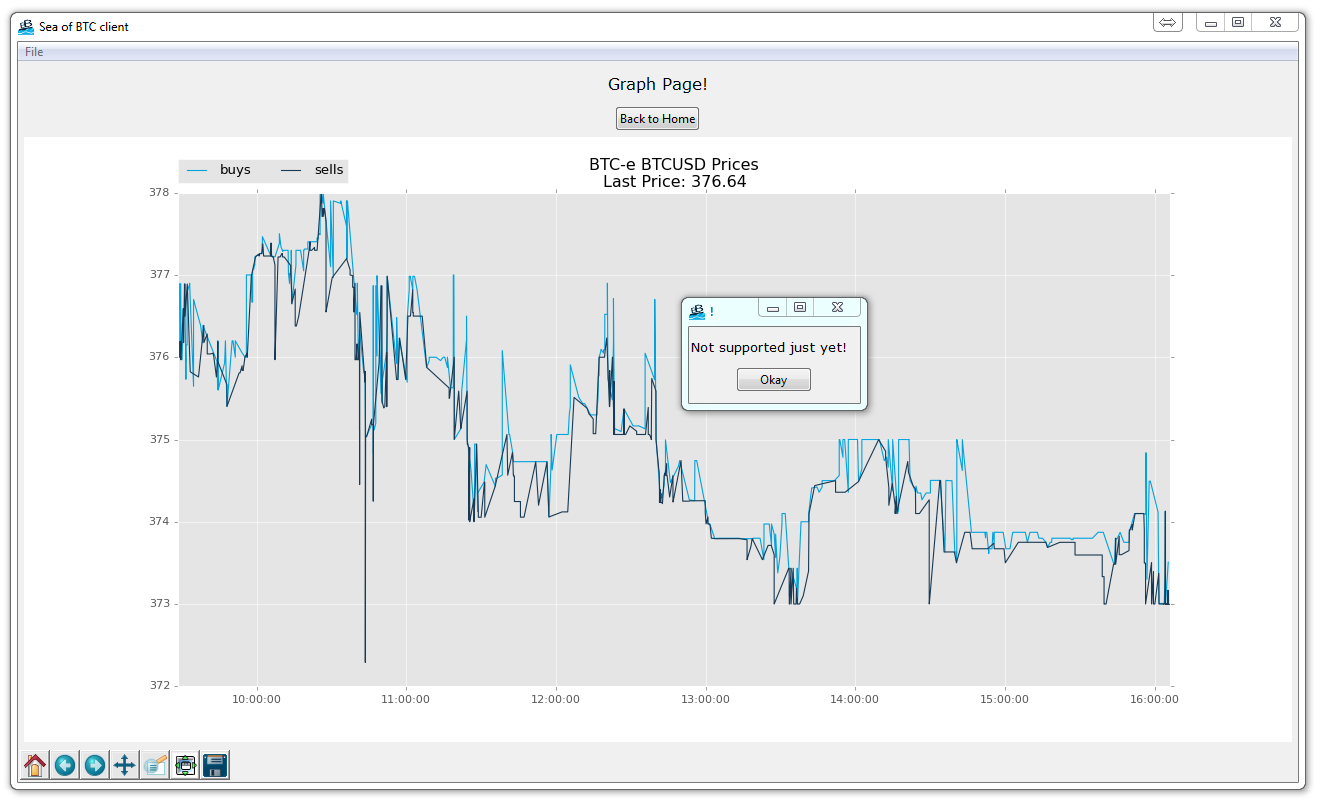

The result now if you go to File and choose save settings:

Tkinter GUI tutorial in Python

The full code:

# The code for changing pages was derived from: http://stackoverflow.com/questions/7546050/switch-between-two-frames-in-tkinter
# License: http://creativecommons.org/licenses/by-sa/3.0/

import matplotlib
matplotlib.use("TkAgg")
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg, NavigationToolbar2TkAgg
from matplotlib.figure import Figure
import matplotlib.animation as animation
from matplotlib import style

import tkinter as tk
from tkinter import ttk

import urllib
import json

import pandas as pd
import numpy as np

from matplotlib import pyplot as plt


LARGE_FONT= ("Verdana", 12)
NORM_FONT= ("Verdana", 10)
SMALL_FONT= ("Verdana", 8)


style.use("ggplot")

f = Figure()
a = f.add_subplot(111)


def popupmsg(msg):
    popup = tk.Tk()
    popup.wm_title("!")
    label = ttk.Label(popup, text=msg, font=NORM_FONT)
    label.pack(side="top", fill="x", pady=10)
    B1 = ttk.Button(popup, text="Okay", command = popup.destroy)
    B1.pack()
    popup.mainloop()



def animate(i):
    dataLink = 'https://btc-e.com/api/3/trades/btc_usd?limit=2000'
    data = urllib.request.urlopen(dataLink)
    data = data.readall().decode("utf-8")
    data = json.loads(data)


    data = data["btc_usd"]
    data = pd.DataFrame(data)

    buys = data[(data['type']=="bid")]
    buys["datestamp"] = np.array(buys["timestamp"]).astype("datetime64[s]")
    buyDates = (buys["datestamp"]).tolist()


    sells = data[(data['type']=="ask")]
    sells["datestamp"] = np.array(sells["timestamp"]).astype("datetime64[s]")
    sellDates = (sells["datestamp"]).tolist()

    a.clear()

    a.plot_date(buyDates, buys["price"], "#00A3E0", label="buys")
    a.plot_date(sellDates, sells["price"], "#183A54", label="sells")

    a.legend(bbox_to_anchor=(0, 1.02, 1, .102), loc=3,
             ncol=2, borderaxespad=0)

    title = "BTC-e BTCUSD Prices\nLast Price: "+str(data["price"][1999])
    a.set_title(title)









class SeaofBTCapp(tk.Tk):

    def __init__(self, *args, **kwargs):

        tk.Tk.__init__(self, *args, **kwargs)

        tk.Tk.iconbitmap(self, default="clienticon.ico")
        tk.Tk.wm_title(self, "Sea of BTC client")


        container = tk.Frame(self)
        container.pack(side="top", fill="both", expand = True)
        container.grid_rowconfigure(0, weight=1)
        container.grid_columnconfigure(0, weight=1)


        menubar = tk.Menu(container)
        filemenu = tk.Menu(menubar, tearoff=0)
        filemenu.add_command(label="Save settings", command = lambda: popupmsg("Not supported just yet!"))
        filemenu.add_separator()
        filemenu.add_command(label="Exit", command=quit)
        menubar.add_cascade(label="File", menu=filemenu)

        tk.Tk.config(self, menu=menubar)

        self.frames = {}

        for F in (StartPage, BTCe_Page):

            frame = F(container, self)

            self.frames[F] = frame

            frame.grid(row=0, column=0, sticky="nsew")

        self.show_frame(StartPage)

    def show_frame(self, cont):

        frame = self.frames[cont]
        frame.tkraise()


class StartPage(tk.Frame):

    def __init__(self, parent, controller):
        tk.Frame.__init__(self,parent)
        label = tk.Label(self, text=("""ALPHA Bitcoin trading application
        use at your own risk. There is no promise
        of warranty."""), font=LARGE_FONT)
        label.pack(pady=10,padx=10)

        button1 = ttk.Button(self, text="Agree",
                            command=lambda: controller.show_frame(BTCe_Page))
        button1.pack()

        button2 = ttk.Button(self, text="Disagree",
                            command=quit)
        button2.pack()



class PageOne(tk.Frame):

    def __init__(self, parent, controller):
        tk.Frame.__init__(self, parent)
        label = tk.Label(self, text="Page One!!!", font=LARGE_FONT)
        label.pack(pady=10,padx=10)

        button1 = ttk.Button(self, text="Back to Home",
                            command=lambda: controller.show_frame(StartPage))
        button1.pack()




class BTCe_Page(tk.Frame):

    def __init__(self, parent, controller):
        tk.Frame.__init__(self, parent)
        label = tk.Label(self, text="Graph Page!", font=LARGE_FONT)
        label.pack(pady=10,padx=10)

        button1 = ttk.Button(self, text="Back to Home",
                            command=lambda: controller.show_frame(StartPage))
        button1.pack()





        canvas = FigureCanvasTkAgg(f, self)
        canvas.show()
        canvas.get_tk_widget().pack(side=tk.BOTTOM, fill=tk.BOTH, expand=True)

        toolbar = NavigationToolbar2TkAgg(canvas, self)
        toolbar.update()
        canvas._tkcanvas.pack(side=tk.TOP, fill=tk.BOTH, expand=True)




app = SeaofBTCapp()
app.geometry("1280x720")
ani = animation.FuncAnimation(f, animate, interval=5000)
app.mainloop()
