Sending and Receiving data using send and recv commands with MPI

comm.recv() and comm.send()



Since the main idea of MPI is to send and receive messages, I think it'd be a good idea to go ahead and cover that.

There are many ways to send and receive data, we'll cover the most direct method first, in its most basic form. There are many ways to send and receive data, however:

  • one to one - one node to another.
  • one to many - one node to all nodes or many of them.
  • many to one - many nodes, or all nodes, to one node (usually the master).

from mpi4py import MPI
import time

comm = MPI.COMM_WORLD

rank = comm.rank
size = comm.size
name = MPI.Get_processor_name()

shared = (rank+1)*5

if rank == 0:
    data = shared
    comm.send(data, dest=1)
    comm.send(data, dest=2)
    print 'From rank',name,'we sent',data
    time.sleep(5)

elif rank == 1:
    data = comm.recv(source=0)
    print 'on node',name, 'we received:',data


elif rank == 2:
    data = comm.recv(source=0)
    print 'on node',name, 'we received:',data


Sending and receiving data in the basic form is pretty simple using comm.send and comm.recv (short for receive).

We're using two parameters in comm.send. The first parameter is the data that we want to send, which we're calling data. The next parameter is the destination, or the node number.

To receive, we're just using one parameter, which is source, or what node are we expecting this data to come from.

After that, we're printing to console any data that we have.

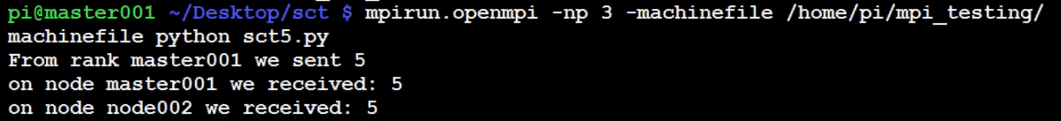

mpirun.openmpi -np 3 -machinefile /home/pi/mpi_testing/machinefile python ~/Desktop/sct/sct5.py
