MPI broadcasting tutorial with Python, mpi4py, and bcast

MPI bcast example in Python

from mpi4py import MPI

rank = comm.rank

if rank == 0:
    data = {'a':1,'b':2,'c':3}
    data = None

data = comm.bcast(data, root=0)
print 'rank',rank,data

What's happening is, first, we assign some data to rank 0, the master node. Then, we want to "broadcast" with bcast the data to all of the other nodes. We are then setting all data to None first, so all other nodes have None as their data.

Next, we use comm.bcast() to broadcast the data from rank 0. So, the first parameter is the data, the second, "root," means "from what node." With broadcast, all nodes automatically accept the data, under the data var name.

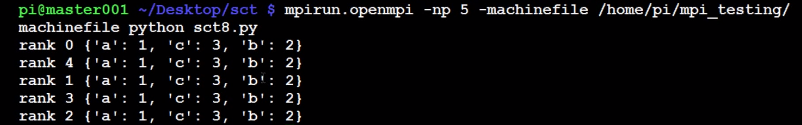

mpirun.openmpi -np 5 -machinefile /home/pi/mpi_testing/machinefile python ~/Desktop/sct/
MPI with MPI4py and Python tutorial
