Finishing Chat Application - Kivy with Python Tutorials

Welcome to part 6 of our Kivy chatroom tutorials. In this tutorial, we'll be wrapping up the basics of our chat room application.

Up to this point, we've built out our app to our ending chatroom page, and built out our main chat viewing scroll-able label. Now, we just need to plug everything in and go!

Code up to this point:

import kivy
from kivy.app import App
from kivy.uix.label import Label
from kivy.uix.gridlayout import GridLayout
from kivy.uix.textinput import TextInput
# to use buttons:
from kivy.uix.button import Button
from kivy.uix.screenmanager import ScreenManager, Screen
import socket_client
from kivy.clock import Clock
from kivy.core.window import Window
from kivy.uix.scrollview import ScrollView


kivy.require("1.10.1")


class ConnectPage(GridLayout):
    # runs on initialization
    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        self.cols = 2  # used for our grid

        with open("prev_details.txt","r") as f:
            d = f.read().split(",")
            prev_ip = d[0]
            prev_port = d[1]
            prev_username = d[2]

        self.add_widget(Label(text='IP:'))  # widget #1, top left
        self.ip = TextInput(text=prev_ip, multiline=False)  # defining self.ip...
        self.add_widget(self.ip) # widget #2, top right

        self.add_widget(Label(text='Port:'))
        self.port = TextInput(text=prev_port, multiline=False)
        self.add_widget(self.port)

        self.add_widget(Label(text='Username:'))
        self.username = TextInput(text=prev_username, multiline=False)
        self.add_widget(self.username)

        # add our button.
        self.join = Button(text="Join")
        self.join.bind(on_press=self.join_button)
        self.add_widget(Label())  # just take up the spot.
        self.add_widget(self.join)

    def join_button(self, instance):
        port = self.port.text
        ip = self.ip.text
        username = self.username.text
        with open("prev_details.txt","w") as f:
            f.write(f"{ip},{port},{username}")
        #print(f"Joining {ip}:{port} as {username}")
        # Create info string, update InfoPage with a message and show it
        info = f"Joining {ip}:{port} as {username}"
        chat_app.info_page.update_info(info)
        chat_app.screen_manager.current = 'Info'
        Clock.schedule_once(self.connect, 1)

    # Connects to the server
    # (second parameter is the time after which this function had been called,
    #  we don't care about it, but kivy sends it, so we have to receive it)
    def connect(self, _):

        # Get information for sockets client
        port = int(self.port.text)
        ip = self.ip.text
        username = self.username.text

        if not socket_client.connect(ip, port, username, show_error):
            return

        # Create chat page and activate it
        chat_app.create_chat_page()
        chat_app.screen_manager.current = 'Chat'



# This class is an improved version of Label
# Kivy does not provide scrollable label, so we need to create one
class ScrollableLabel(ScrollView):

    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        # ScrollView does not allow us to add more than one widget, so we need to trick it
        # by creating a layout and placing two widgets inside it
        # Layout is going to have one collumn and and size_hint_y set to None,
        # so height wo't default to any size (we are going to set it on our own)
        self.layout = GridLayout(cols=1, size_hint_y=None)
        self.add_widget(self.layout)

        # Now we need two wodgets - Label for chat history and 'artificial' widget below
        # so we can scroll to it every new message and keep new messages visible
        # We want to enable markup, so we can set colors for example
        self.chat_history = Label(size_hint_y=None, markup=True)
        self.scroll_to_point = Label()

        # We add them to our layout
        self.layout.add_widget(self.chat_history)
        self.layout.add_widget(self.scroll_to_point)

    # Methos called externally to add new message to the chat history
    def update_chat_history(self, message):

        # First add new line and message itself
        self.chat_history.text += '\n' + message

        # Set layout height to whatever height of chat history text is + 15 pixels
        # (adds a bit of space at teh bottom)
        # Set chat history label to whatever height of chat history text is
        # Set width of chat history text to 98 of the label width (adds small margins)
        self.layout.height = self.chat_history.texture_size[1] + 15
        self.chat_history.height = self.chat_history.texture_size[1]
        self.chat_history.text_size = (self.chat_history.width * 0.98, None)

        # As we are updating above, text height, so also label and layout height are going to be bigger
        # than the area we have for this widget. ScrollView is going to add a scroll, but won't
        # scroll to the botton, nor there is a method that can do that.
        # That's why we want additional, empty wodget below whole text - just to be able to scroll to it,
        # so scroll to the bottom of the layout
        self.scroll_to(self.scroll_to_point)



class ChatPage(GridLayout):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        # We are going to use 1 column and 2 rows
        self.cols = 1
        self.rows = 2

        # First row is going to be occupied by our scrollable label
        # We want it be take 90% of app height
        self.history = ScrollableLabel(height=Window.size[1]*0.9, size_hint_y=None)
        self.add_widget(self.history)

        # In the second row, we want to have input fields and Send button
        # Input field should take 80% of window width
        # We also want to bind button click to send_message method
        self.new_message = TextInput(width=Window.size[0]*0.8, size_hint_x=None, multiline=False)
        self.send = Button(text="Send")
        self.send.bind(on_press=self.send_message)

        # To be able to add 2 widgets into a layout with just one collumn, we use additional layout,
        # add widgets there, then add this layout to main layout as second row
        bottom_line = GridLayout(cols=2)
        bottom_line.add_widget(self.new_message)
        bottom_line.add_widget(self.send)
        self.add_widget(bottom_line)

    # Gets called when either Send button or Enter key is being pressed
    # (kivy passes button object here as well, but we don;t care about it)
    def send_message(self, _):
        print("send a message!!!")


# Simple information/error page
class InfoPage(GridLayout):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        # Just one column
        self.cols = 1

        # And one label with bigger font and centered text
        self.message = Label(halign="center", valign="middle", font_size=30)

        # By default every widget returns it's side as [100, 100], it gets finally resized,
        # but we have to listen for size change to get a new one
        # more: https://github.com/kivy/kivy/issues/1044
        self.message.bind(width=self.update_text_width)

        # Add text widget to the layout
        self.add_widget(self.message)

    # Called with a message, to update message text in widget
    def update_info(self, message):
        self.message.text = message

    # Called on label width update, so we can set text width properly - to 90% of label width
    def update_text_width(self, *_):
        self.message.text_size = (self.message.width * 0.9, None)


class EpicApp(App):
    def build(self):

        # We are going to use screen manager, so we can add multiple screens
        # and switch between them
        self.screen_manager = ScreenManager()

        # Initial, connection screen (we use passed in name to activate screen)
        # First create a page, then a new screen, add page to screen and screen to screen manager
        self.connect_page = ConnectPage()
        screen = Screen(name='Connect')
        screen.add_widget(self.connect_page)
        self.screen_manager.add_widget(screen)

        # Info page
        self.info_page = InfoPage()
        screen = Screen(name='Info')
        screen.add_widget(self.info_page)
        self.screen_manager.add_widget(screen)

        return self.screen_manager

    # We cannot create chat screen with other screens, as it;s init method will start listening
    # for incoming connections, but at this stage connection is not being made yet, so we
    # call this method later
    def create_chat_page(self):
        self.chat_page = ChatPage()
        screen = Screen(name='Chat')
        screen.add_widget(self.chat_page)
        self.screen_manager.add_widget(screen)


# Error callback function, used by sockets client
# Updates info page with an error message, shows message and schedules exit in 10 seconds
# time.sleep() won't work here - will block Kivy and page with error message won't show up
def show_error(message):
    chat_app.info_page.update_info(message)
    chat_app.screen_manager.current = 'Info'
    Clock.schedule_once(sys.exit, 10)

if __name__ == "__main__":
    chat_app = EpicApp()
    chat_app.run()

Now,

First, we want to be able to send messages when we press the enter key. To do this, we can use from kivy.core.window import Window to bind a function to the entire window:

        # To be able to send message on Enter key, we want to listen to keypresses
        Window.bind(on_key_down=self.on_key_down)

Then we bring focus to the text input:

        Clock.schedule_once(self.focus_text_input, 1)

Next, start listening for incoming messages from others:

        socket_client.start_listening(self.incoming_message, show_error)

We bound to the Window a method called on_key_down, but this doesn't yet exist, so let's do that:

    # Gets called on key press
    def on_key_down(self, instance, keyboard, keycode, text, modifiers):

        # But we want to take an action only when Enter key is being pressed, and send a message
        if keycode == 40:
            self.send_message(None)

Now, if the enter key is pressed, we send the message.

Another method we referenced that doesn't yet exist: focus_text_input

    # Sets focus to text input field
    def focus_text_input(self, _):
        self.new_message.focus = True

Finally, we also need our incoming_messages method:

    # Passed to sockets client, get's called on new message
    def incoming_message(self, username, message):
        # Update chat history with username and message, green color for username
        self.history.update_chat_history(f'[color=20dd20]{username}[/color] > {message}')

Running quickly to test, looks like things are working so far. Our last job is to actually do the send_message method!

    # Gets called when either Send button or Enter key is being pressed
    # (kivy passes button object here as well, but we don;t care about it)
    def send_message(self, _):

        # Get message text and clear message input field
        message = self.new_message.text
        self.new_message.text = ''

        # If there is any message - add it to chat history and send to the server
        if message:
            # Our messages - use red color for the name
            self.history.update_chat_history(f'[color=dd2020]{chat_app.connect_page.username.text}[/color] > {message}')
            socket_client.send(message)

        # As mentioned above, we have to shedule for refocusing to input field
        Clock.schedule_once(self.focus_text_input, 0.1)

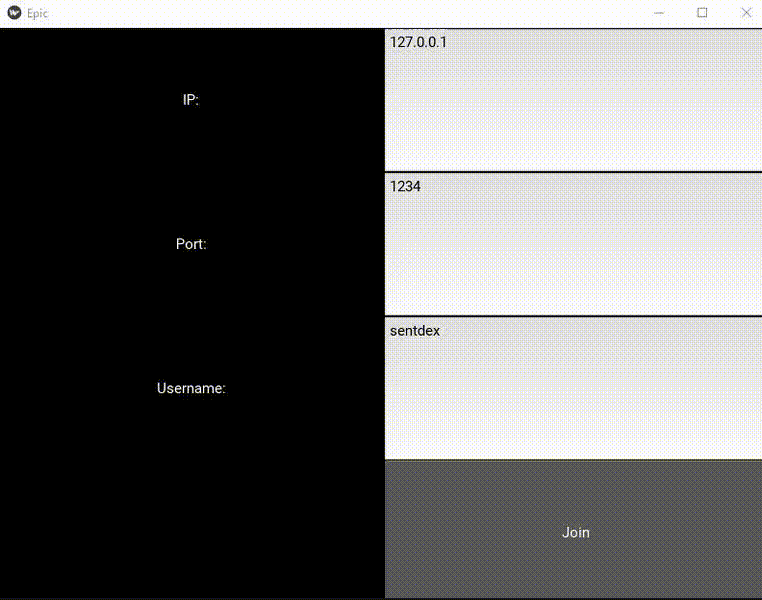

Running everything now:

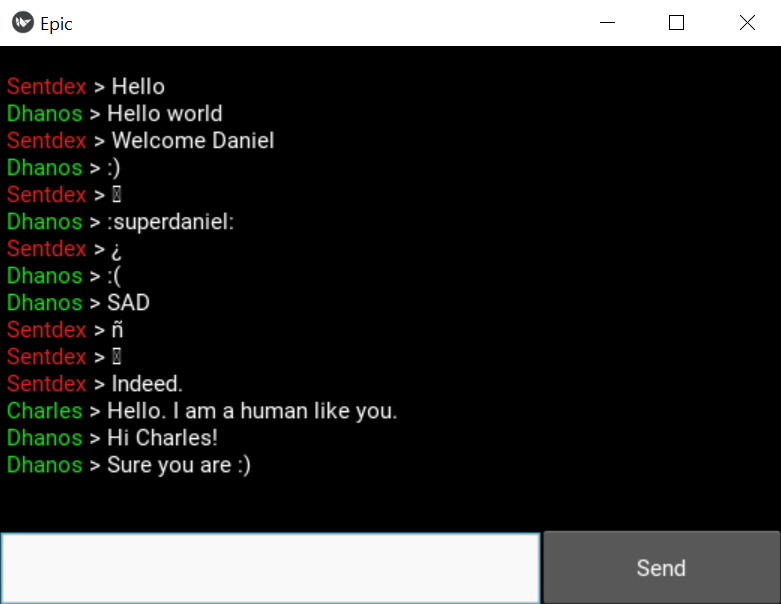

Awesome. Testing for multiple clients:

Very cool!

Full code up to this point:

import kivy
from kivy.app import App
from kivy.uix.label import Label
from kivy.uix.gridlayout import GridLayout
from kivy.uix.textinput import TextInput
# to use buttons:
from kivy.uix.button import Button
from kivy.uix.screenmanager import ScreenManager, Screen
import socket_client
from kivy.clock import Clock
from kivy.core.window import Window
from kivy.uix.scrollview import ScrollView
import sys


kivy.require("1.10.1")


class ConnectPage(GridLayout):
    # runs on initialization
    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        self.cols = 2  # used for our grid

        with open("prev_details.txt","r") as f:
            d = f.read().split(",")
            prev_ip = d[0]
            prev_port = d[1]
            prev_username = d[2]

        self.add_widget(Label(text='IP:'))  # widget #1, top left
        self.ip = TextInput(text=prev_ip, multiline=False)  # defining self.ip...
        self.add_widget(self.ip) # widget #2, top right

        self.add_widget(Label(text='Port:'))
        self.port = TextInput(text=prev_port, multiline=False)
        self.add_widget(self.port)

        self.add_widget(Label(text='Username:'))
        self.username = TextInput(text=prev_username, multiline=False)
        self.add_widget(self.username)

        # add our button.
        self.join = Button(text="Join")
        self.join.bind(on_press=self.join_button)
        self.add_widget(Label())  # just take up the spot.
        self.add_widget(self.join)

    def join_button(self, instance):
        port = self.port.text
        ip = self.ip.text
        username = self.username.text
        with open("prev_details.txt","w") as f:
            f.write(f"{ip},{port},{username}")
        #print(f"Joining {ip}:{port} as {username}")
        # Create info string, update InfoPage with a message and show it
        info = f"Joining {ip}:{port} as {username}"
        chat_app.info_page.update_info(info)
        chat_app.screen_manager.current = 'Info'
        Clock.schedule_once(self.connect, 1)

    # Connects to the server
    # (second parameter is the time after which this function had been called,
    #  we don't care about it, but kivy sends it, so we have to receive it)
    def connect(self, _):

        # Get information for sockets client
        port = int(self.port.text)
        ip = self.ip.text
        username = self.username.text

        if not socket_client.connect(ip, port, username, show_error):
            return

        # Create chat page and activate it
        chat_app.create_chat_page()
        chat_app.screen_manager.current = 'Chat'



# This class is an improved version of Label
# Kivy does not provide scrollable label, so we need to create one
class ScrollableLabel(ScrollView):

    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        # ScrollView does not allow us to add more than one widget, so we need to trick it
        # by creating a layout and placing two widgets inside it
        # Layout is going to have one collumn and and size_hint_y set to None,
        # so height wo't default to any size (we are going to set it on our own)
        self.layout = GridLayout(cols=1, size_hint_y=None)
        self.add_widget(self.layout)

        # Now we need two wodgets - Label for chat history and 'artificial' widget below
        # so we can scroll to it every new message and keep new messages visible
        # We want to enable markup, so we can set colors for example
        self.chat_history = Label(size_hint_y=None, markup=True)
        self.scroll_to_point = Label()

        # We add them to our layout
        self.layout.add_widget(self.chat_history)
        self.layout.add_widget(self.scroll_to_point)

    # Methos called externally to add new message to the chat history
    def update_chat_history(self, message):

        # First add new line and message itself
        self.chat_history.text += '\n' + message

        # Set layout height to whatever height of chat history text is + 15 pixels
        # (adds a bit of space at teh bottom)
        # Set chat history label to whatever height of chat history text is
        # Set width of chat history text to 98 of the label width (adds small margins)
        self.layout.height = self.chat_history.texture_size[1] + 15
        self.chat_history.height = self.chat_history.texture_size[1]
        self.chat_history.text_size = (self.chat_history.width * 0.98, None)

        # As we are updating above, text height, so also label and layout height are going to be bigger
        # than the area we have for this widget. ScrollView is going to add a scroll, but won't
        # scroll to the botton, nor there is a method that can do that.
        # That's why we want additional, empty wodget below whole text - just to be able to scroll to it,
        # so scroll to the bottom of the layout
        self.scroll_to(self.scroll_to_point)



class ChatPage(GridLayout):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        # We are going to use 1 column and 2 rows
        self.cols = 1
        self.rows = 2

        # First row is going to be occupied by our scrollable label
        # We want it be take 90% of app height
        self.history = ScrollableLabel(height=Window.size[1]*0.9, size_hint_y=None)
        self.add_widget(self.history)

        # In the second row, we want to have input fields and Send button
        # Input field should take 80% of window width
        # We also want to bind button click to send_message method
        self.new_message = TextInput(width=Window.size[0]*0.8, size_hint_x=None, multiline=False)
        self.send = Button(text="Send")
        self.send.bind(on_press=self.send_message)

        # To be able to add 2 widgets into a layout with just one collumn, we use additional layout,
        # add widgets there, then add this layout to main layout as second row
        bottom_line = GridLayout(cols=2)
        bottom_line.add_widget(self.new_message)
        bottom_line.add_widget(self.send)
        self.add_widget(bottom_line)



        # To be able to send message on Enter key, we want to listen to keypresses
        Window.bind(on_key_down=self.on_key_down)

        # We also want to focus on our text input field
        # Kivy by default takes focus out out of it once we are sending message
        # The problem here is that 'self.new_message.focus = True' does not work when called directly,
        # so we have to schedule it to be called in one second
        # The other problem is that schedule_once() have no ability to pass any parameters, so we have
        # to create and call a function that takes no parameters
        Clock.schedule_once(self.focus_text_input, 1)

        # And now, as we have out layout ready and everything set, we can start listening for incimmong messages
        # Listening method is going to call a callback method to update chat history with new messages,
        # so we have to start listening for new messages after we create this layout
        socket_client.start_listening(self.incoming_message, show_error)


    # Gets called on key press
    def on_key_down(self, instance, keyboard, keycode, text, modifiers):

        # But we want to take an action only when Enter key is being pressed, and send a message
        if keycode == 40:
            self.send_message(None)

    # Gets called when either Send button or Enter key is being pressed
    # (kivy passes button object here as well, but we don;t care about it)
    def send_message(self, _):

        # Get message text and clear message input field
        message = self.new_message.text
        self.new_message.text = ''

        # If there is any message - add it to chat history and send to the server
        if message:
            # Our messages - use red color for the name
            self.history.update_chat_history(f'[color=dd2020]{chat_app.connect_page.username.text}[/color] > {message}')
            socket_client.send(message)

        # As mentioned above, we have to shedule for refocusing to input field
        Clock.schedule_once(self.focus_text_input, 0.1)


    # Sets focus to text input field
    def focus_text_input(self, _):
        self.new_message.focus = True

    # Passed to sockets client, get's called on new message
    def incoming_message(self, username, message):
        # Update chat history with username and message, green color for username
        self.history.update_chat_history(f'[color=20dd20]{username}[/color] > {message}')


# Simple information/error page
class InfoPage(GridLayout):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        # Just one column
        self.cols = 1

        # And one label with bigger font and centered text
        self.message = Label(halign="center", valign="middle", font_size=30)

        # By default every widget returns it's side as [100, 100], it gets finally resized,
        # but we have to listen for size change to get a new one
        # more: https://github.com/kivy/kivy/issues/1044
        self.message.bind(width=self.update_text_width)

        # Add text widget to the layout
        self.add_widget(self.message)

    # Called with a message, to update message text in widget
    def update_info(self, message):
        self.message.text = message

    # Called on label width update, so we can set text width properly - to 90% of label width
    def update_text_width(self, *_):
        self.message.text_size = (self.message.width * 0.9, None)


class EpicApp(App):
    def build(self):

        # We are going to use screen manager, so we can add multiple screens
        # and switch between them
        self.screen_manager = ScreenManager()

        # Initial, connection screen (we use passed in name to activate screen)
        # First create a page, then a new screen, add page to screen and screen to screen manager
        self.connect_page = ConnectPage()
        screen = Screen(name='Connect')
        screen.add_widget(self.connect_page)
        self.screen_manager.add_widget(screen)

        # Info page
        self.info_page = InfoPage()
        screen = Screen(name='Info')
        screen.add_widget(self.info_page)
        self.screen_manager.add_widget(screen)

        return self.screen_manager

    # We cannot create chat screen with other screens, as it;s init method will start listening
    # for incoming connections, but at this stage connection is not being made yet, so we
    # call this method later
    def create_chat_page(self):
        self.chat_page = ChatPage()
        screen = Screen(name='Chat')
        screen.add_widget(self.chat_page)
        self.screen_manager.add_widget(screen)


# Error callback function, used by sockets client
# Updates info page with an error message, shows message and schedules exit in 10 seconds
# time.sleep() won't work here - will block Kivy and page with error message won't show up
def show_error(message):
    chat_app.info_page.update_info(message)
    chat_app.screen_manager.current = 'Info'
    Clock.schedule_once(sys.exit, 10)

if __name__ == "__main__":
    chat_app = EpicApp()
    chat_app.run()

Now, the only issue is that, if I resize this window a bit, things get messed up. Let's fix that with another method for ScrollableLabel, called update_chat_history_layout

    def update_chat_history_layout(self, _=None):
        # Set layout height to whatever height of chat history text is + 15 pixels
        # (adds a bit of space at the bottom)
        # Set chat history label to whatever height of chat history text is
        # Set width of chat history text to 98 of the label width (adds small margins)
        self.layout.height = self.chat_history.texture_size[1] + 15
        self.chat_history.height = self.chat_history.texture_size[1]
        self.chat_history.text_size = (self.chat_history.width * 0.98, None)

Next, in our ChatPage class, we'll add:

        self.bind(size=self.adjust_fields)

To the __init__ method. Now we need that adjust_fields method:

    # Updates page layout
    def adjust_fields(self, *_):

        # Chat history height - 90%, but at least 50px for bottom new message/send button part
        if Window.size[1] * 0.1 < 50:
            new_height = Window.size[1] - 50
        else:
            new_height = Window.size[1] * 0.9
        self.history.height = new_height

        # New message input width - 80%, but at least 160px for send button
        if Window.size[0] * 0.2 < 160:
            new_width = Window.size[0] - 160
        else:
            new_width = Window.size[0] * 0.8
        self.new_message.width = new_width

        # Update chat history layout
        #self.history.update_chat_history_layout()
        Clock.schedule_once(self.history.update_chat_history_layout, 0.01)

Note: simply calling self.history.update_chat_history_layout() doesn't work for us here for some reason. Scheduling it, however, does: Clock.schedule_once(self.history.update_chat_history_layout, 0.01)

Anyway, that works!

Alright, with this, we have a ... sort of... respectable app that we've put some time into. Now, we're ready to deploy, which is what we'll be talking about in the next tutorial!

The next tutorial: Packaging and Deployment (PyInstaller, Buildozer) - Kivy with Python Tutorials
