Geographical Plotting with Basemap and Python p. 5

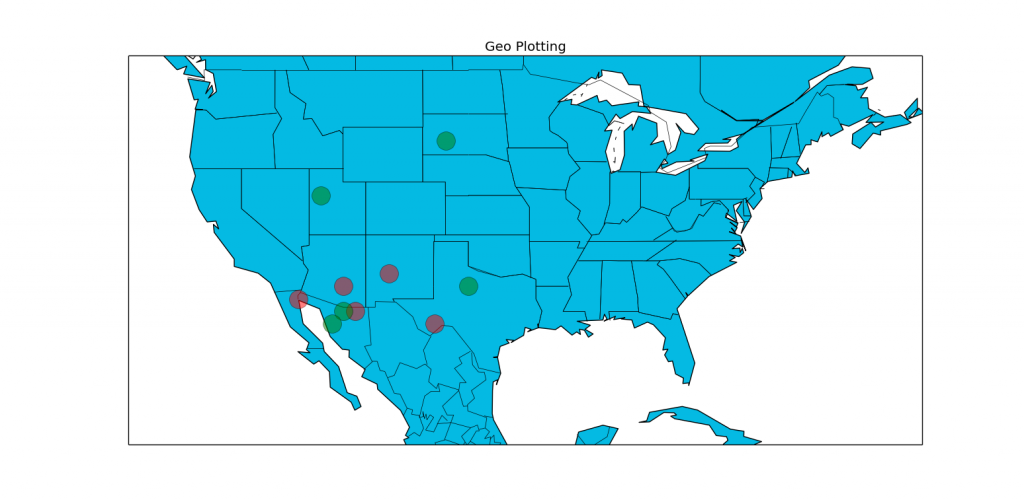

In this Python programming tutorial with Matplotlib and Basemap we cover how to adjust the marker size and the alpha of our coordinate plots. Below is the sample code from the video tutorial:

```from mpl_toolkits.basemap import Basemap
import matplotlib.pyplot as plt

m = Basemap(projection='mill',llcrnrlat=20,urcrnrlat=50,\
llcrnrlon=-130,urcrnrlon=-60,resolution='c')
m.drawcoastlines()
m.drawcountries()
m.drawstates()
m.fillcontinents(color='#04BAE3', lake_color='#FFFFFF')
m.drawmapboundary(fill_color='#FFFFFF')

lat = 30,31,34,33,32
lon = -103,-110,-107,-111,-115

lat2 = 40,33,44,31,30
lon2 = -113,-100,-102,-111,-112

x,y = m(lon,lat)
m.plot(x,y,'ro',markersize=20,alpha=.5)

x,y = m(lon2,lat2)
m.plot(x,y,'go',markersize=20,alpha=.5)

plt.title('Geo Plotting')
plt.show()
```
